Zhiyun-Tech WEEBILL 3 Gimbal with TransMount Video Transmitter plus Servo Zoom/Focus Controller Max

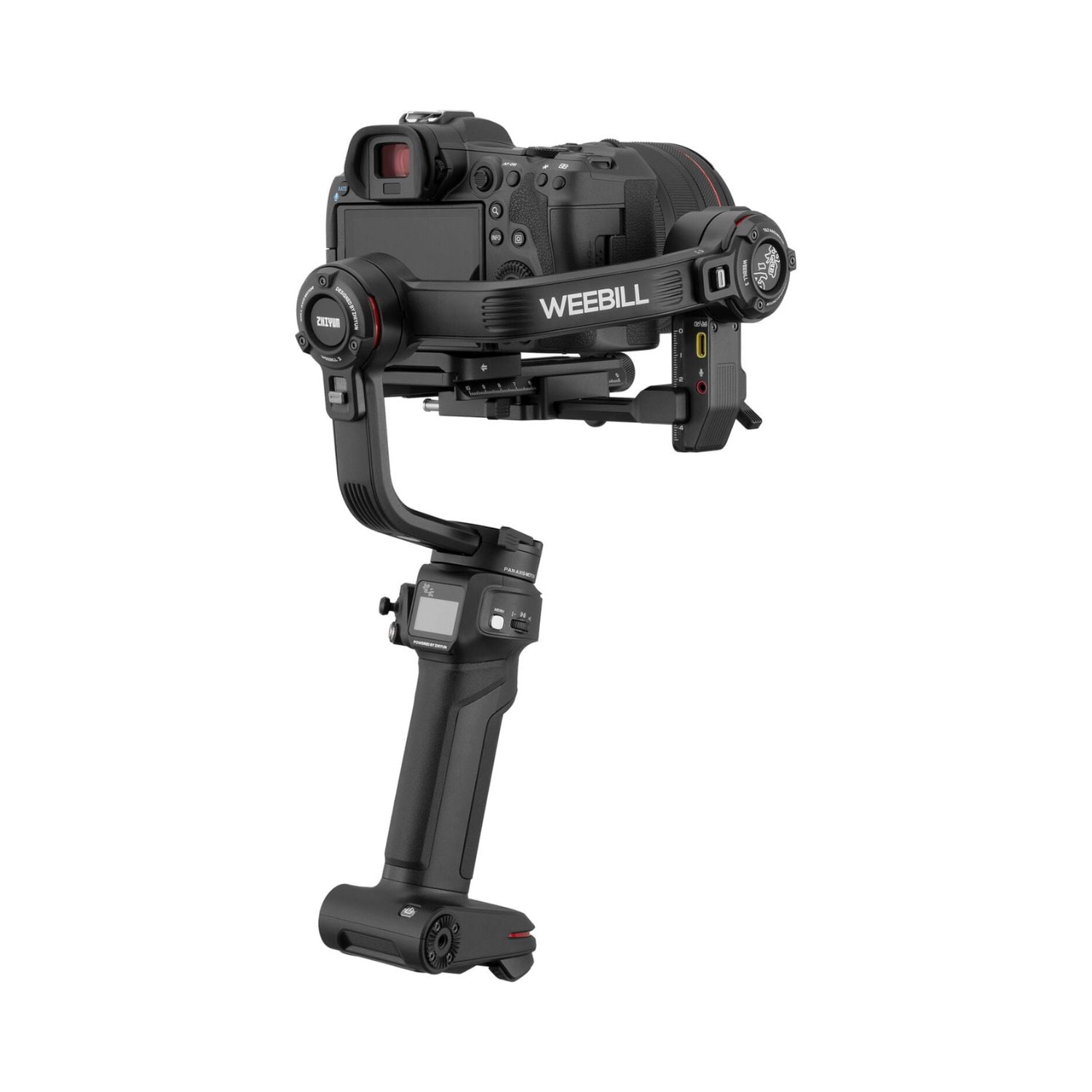

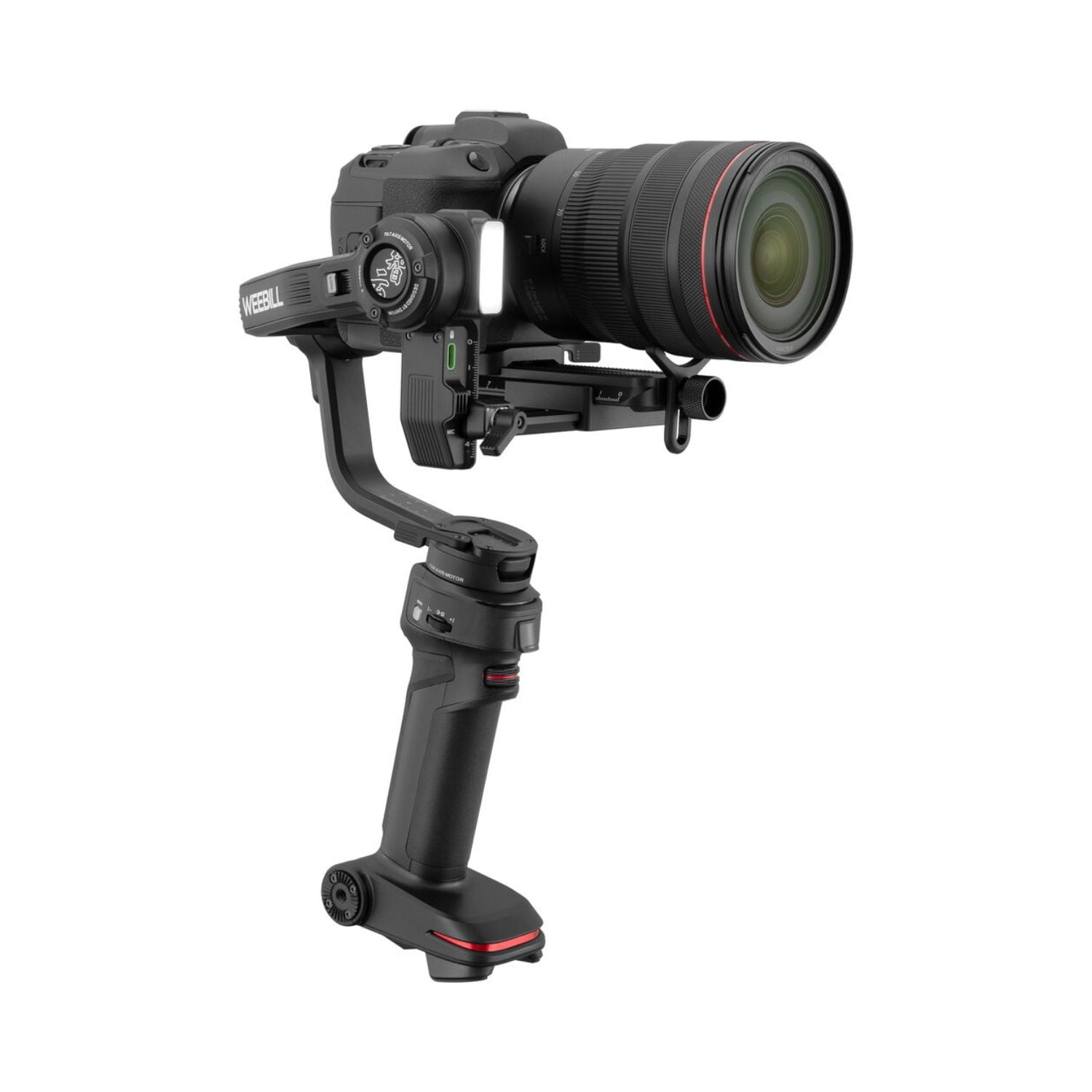

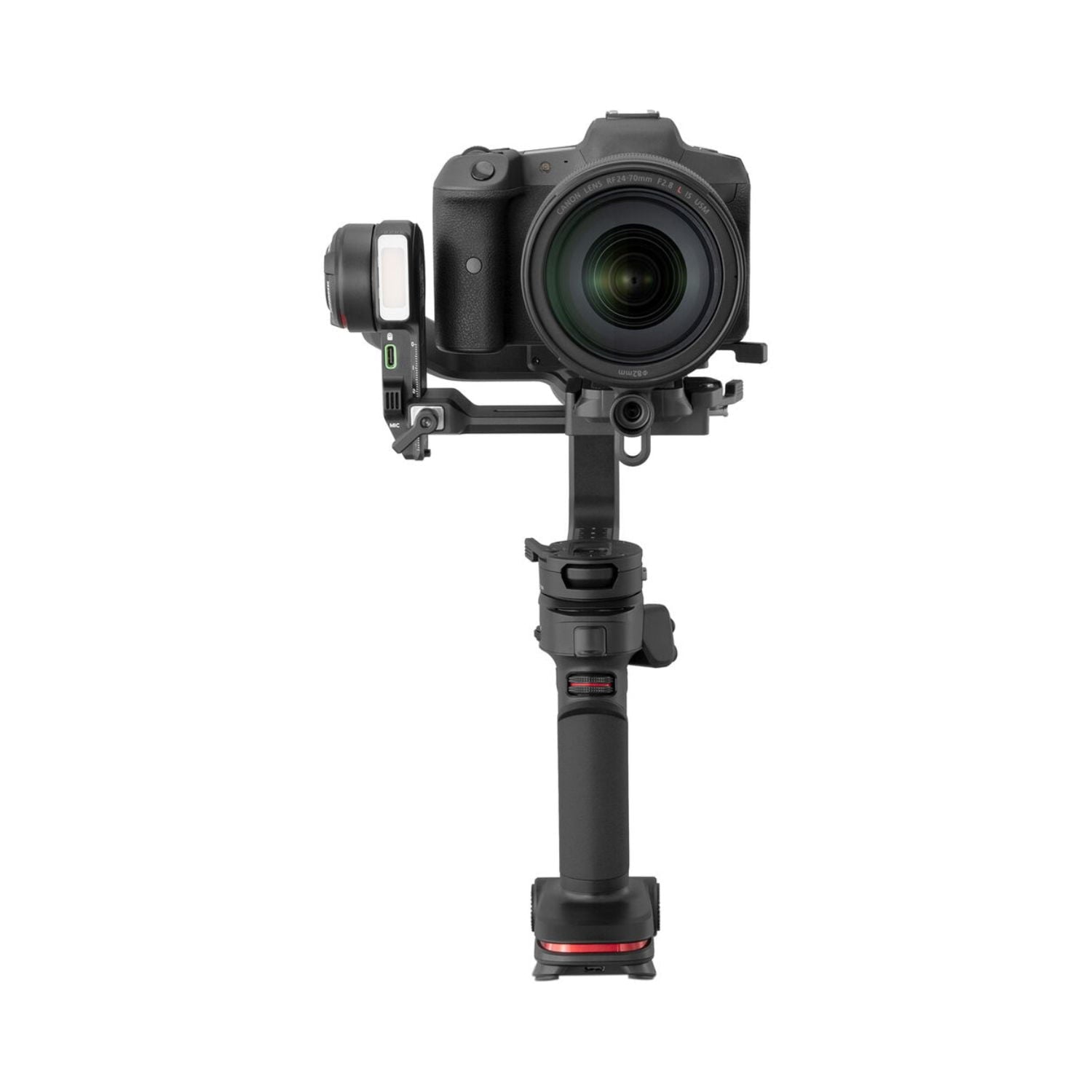

Zhiyun-Tech WEEBILL-3 Gimbal Stabilizer

The improved WEEBILL-3 Handheld Gimbal Stabilizer from Zhiyun is designed for the run-and-gun videographer who wants to forgo bringing additional accessories on shoots, thanks to its built-in microphone and fill light. Both the microphone and fill light are integrated into the optimized sling structure of the gimbal and avoid adding heft to its design. View your settings with the 0.96" OLED touchscreen and toggle between modes or parameters with the various buttons.

Three built-in 2600mAh batteries power your WEEBILL-3 for up to 21 hours and can even charge your camera with quick charge technology. Dual quick release plates with 1/4"-20 screws prevent the need to constantly rebalance your rig when switching to handheld or changing batteries. Two rosette mounts with 1/4"-20 threads allow you to incorporate articulating arms or additional handles, while a 1/4"-20 thread at the bottom of the gimbal supports the included tripod accessory. Control for both the gimbal and camera can be achieved by connecting one of the many control cables and utilizing either the onboard buttons or the smartphone app via the gimbal's Wi-Fi and Bluetooth capabilities.

Revised Design

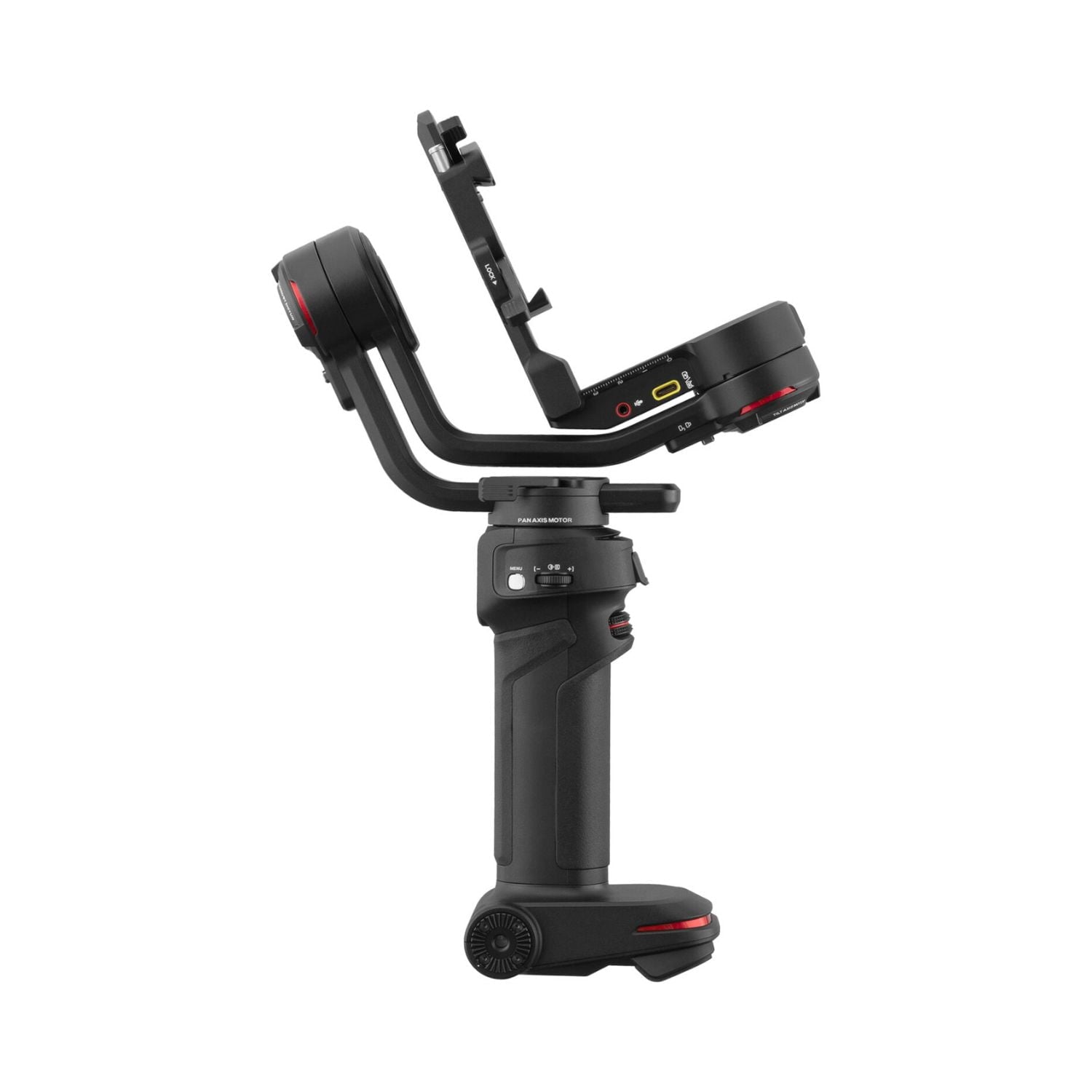

• L-shaped body capable of standing on its own
• Improved Sling 2.0 structure
• Greater battery capacity of 21 hours

Built-In Microphone

• Noise-cancelling, Hi-Fi, cardioid recording
• 3.5mm general audio port

Built-In Fill Light

• 1000 lumens of brightness
• Adjustable color temperature
• Includes four colored filters

Upgraded Motor

• Compact and powerful motors for tilt, roll, and pan
• 360° pan, 310° tilt, and 340° roll
• Optimized stabilization algorithm
• Super lightweight body and improved AXIS locks

Upgraded Quick Release System

• Dual quick release plates allow you to mount cameras without rebalancing
• Change camera batteries without rebalancing
• Magnetic wrench embedded in gimbal design to mount and secure the camera

Gimbal Controls

• Canon, Sony, and Panasonic control cables connect compatible DSLRs to gimbal controls
• 0.96" OLED touchscreen toggles between shooting modes
• Trigger button can be customized to different shooting modes
• Wheel control can be customized to adjust camera parameters, gimbal movement, focus, and zoom
• Compatible with TransMount follow focus/zoom units and transmission systems
• Compatible with the ZY Play app
• 2.4 GHz Wi-Fi operating frequency, Bluetooth 5.0

Specifications

• Grip Design : Handheld Ring
• Gimbal
  Number of Axes :
  3-Axis (Pitch, Roll, Yaw)
  Yaw (Pan): 360°
  Rotation Range Pitch
  (Tilt): 310° (-130 to 180°)
  Roll: 340° (-280 to 60°)
• Compatibility
  Camera Control : On Compatible Models
  Camera Mounting Screw : 2 x 1/4"-20 Male
• Connectivity
  Inputs/Outputs
  1 x 1/8" / 3.5 mm (Audio) Input
  1 x USB Type-C Input
  1 x USB Type-C (1 A 5 VDC Video) Input
  1 x USB Type-C (1.8 A 12 VDC Power) Input
  Wireless Frequency : 2.4 GHz
  Wireless Protocol : Bluetooth 5.0
• Battery
  Battery Type : 3 x 18650
  Battery Capacity : 2600 mAh
  Battery Runtime : 21 Hours
  Battery Charging Time : 2 Hours
  Battery Chemistry : Lithium-Ion
• Power
  Operating Voltage : 9.8 to 12.6 VDC
  Operating Current : 160 to 6000 mA
• General
  Display Type : Fixed Touchscreen OLED
  Mounting
  3 x 1/4"-20 Female
  2 x 1/4"-20 Male
  Dimensions : 13.5 x 8.1 x 2.9" / 342 x 206.5 x 72.5 mm (Folded)
  Weight : 2.4 lb / 1.1 kg
