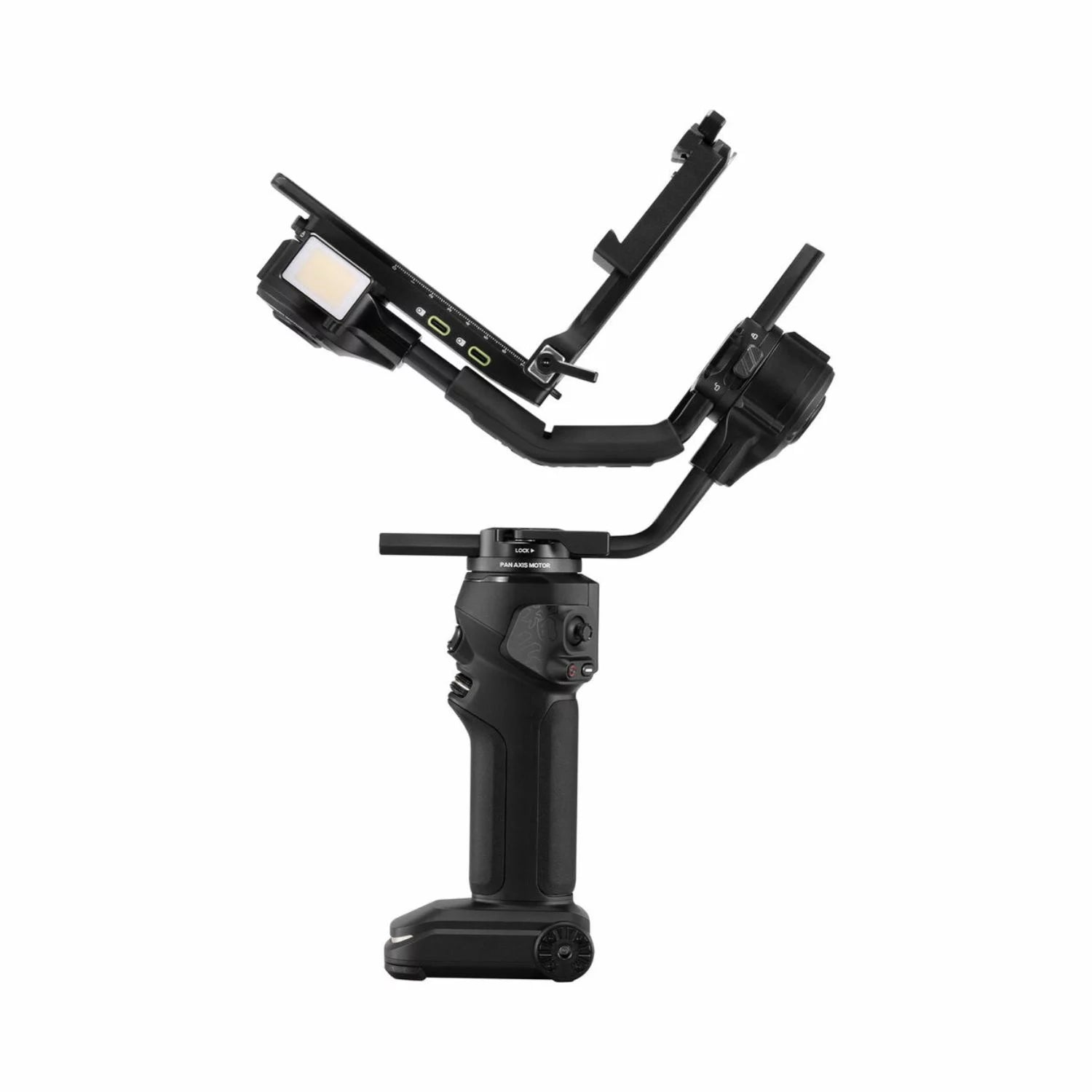

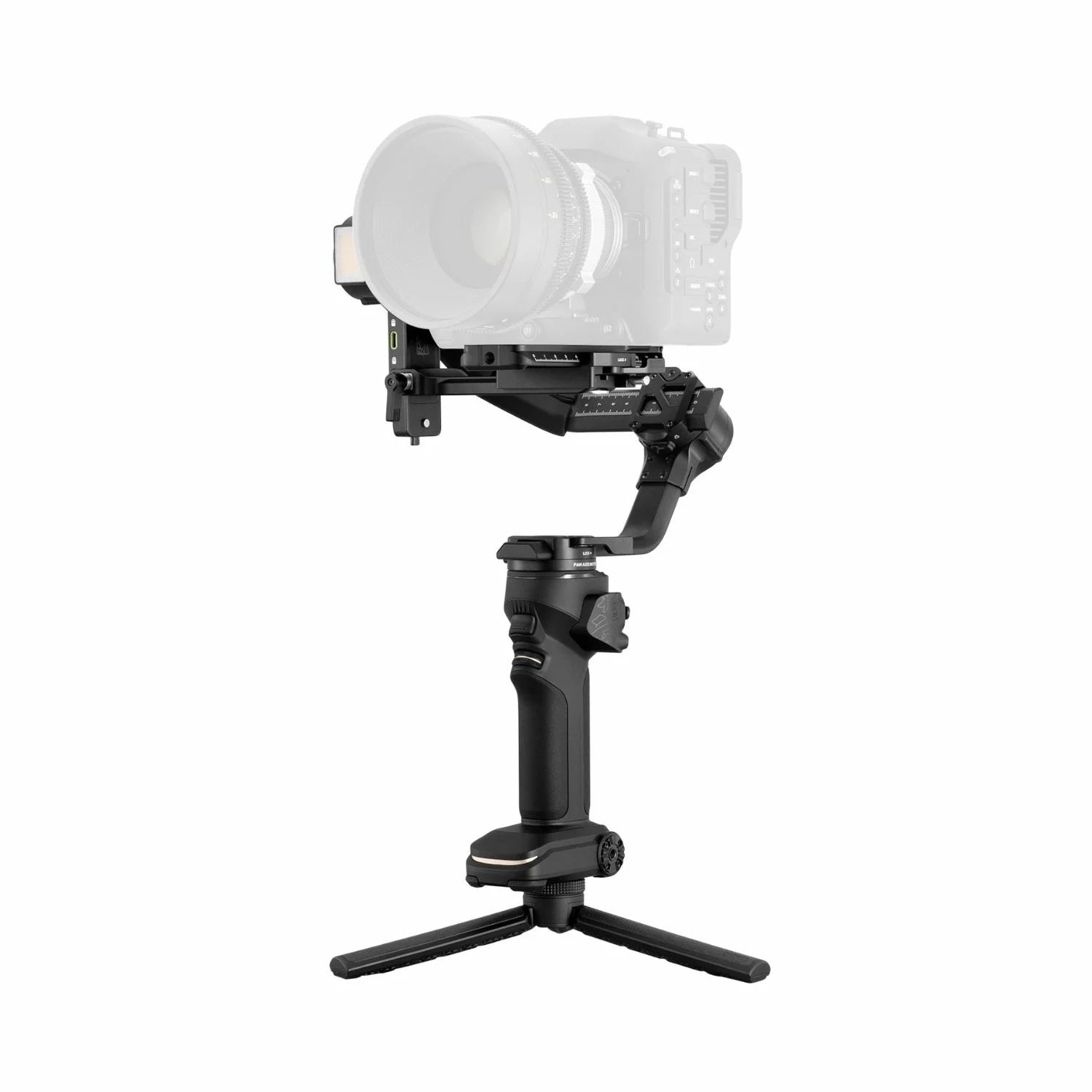

Zhiyun-Tech CRANE 4 3-Axis Handheld Gimbal Stabilizer

Zhiyun-Tech CRANE 4 3-Axis Handheld Gimbal Stabilizer

New intelligent Balance Indication
Balance indicator lights added to the motors provide a timely reminder for precise balance calibration. If it is not levelled, the corresponding shaft motor balance indicator will provide the corresponding reminder light effect.

Freely Switch Between Horizontal & Vertical Shots
Boasts an innovative quick-release module that integrates horizontal and vertical lock structure, enabling effortless switching between native landscape and portrait shooting modes.

Versatile Sling Grip
The extendable sling grip can be adjusted to the gimbal's central axis, allowing for easy switching between sling mode and two-handed modes. The 1/4" screw hole on the grip unlocks more combination possibilities of lights and accessories.

Upgraded Wrist Rest
The flexible wrist rest structure features energy-saving adjustment and skin-friendly texture, making creation effortless and comfortable.

Built-in 10W Fill Light
The built-in 10W fill light adds to the portability of quality shooting, bringing you a lightweight experience than ever with pro LED lighting. Equipped with a light cover to provide ideal light effect for the creation of shooting environment.

Customize Function Settings
The trigger button and front dial support customizable parameter adjustment, such as ISO, shutter and aperture, as well as focus motor and gimbal mode control, making the creative process more intuitive and convenient.

Upgraded Bluetooth Shutter Control
Crane 4 supports Bluetooth shutter control with mainstream cameras. You can start/stop recording or trigger photo-taking functions via the recording button, experiencing a seamless shooting like never before.

Efficient Color Screen
1.22 inch touch control Chinese and English color screen supports multiple functional adjustments, built-in motion timelapse and other functions.

Thoughtful Design
Built-in magnetic tightening wrench for easy disassembly and installation of auxiliary equipment. The shaft arm is equipped with a silicone protective cover to reduce wear and tear caused by carrying the gimbal.

Excellent Focus Performance
With the built-in dual follow focus interface, Crane 4 can be paired with external dual servo focus controllers to provide a precise focusing experience.

Wide Range of Professional Accessories
With the TransMount image transfer system, you can achieve excellent remote monitoring and collaborative authoring. It also supports matching and focal assembly to ensure that professional creation is not limited by equipment.

Strong Battery Life, Long Standby
Four 18650 batteries can meet the needs of high-intensity shooting for a day, and PD fast charge supports charging while using.

Specifications

• Stabilizer
  Following Deviation in Static State
  Max: ± 0.04° / Min: ± 0.01°
  Following Deviation in Motion State
  Max: ± 0.3° / Standard: ± 0.1° / Min: ± 0.05°
  Tilt Mechanical Range
  Max: +142° / Min: -72°
  Roll Mechanical Range
  Max: +71° / Min: -251°
  Pan Mechanical Range
  360°
• Battery
  Operation Voltage
  Max: 16.8V / Min: 11V / Standard: 14.8V
  Operation Current
  Max: 14500mA / Min: 200mA
  Output
  5V, 1A
  Battery Runtime
  Lab Data: 12h
  Charging Time
  Lab Data: 1.5h
• Size & Weight
  Product Size (W*D*H)
  340*280*70mm
  Net Weight
  1673g (Tripod is not included)
