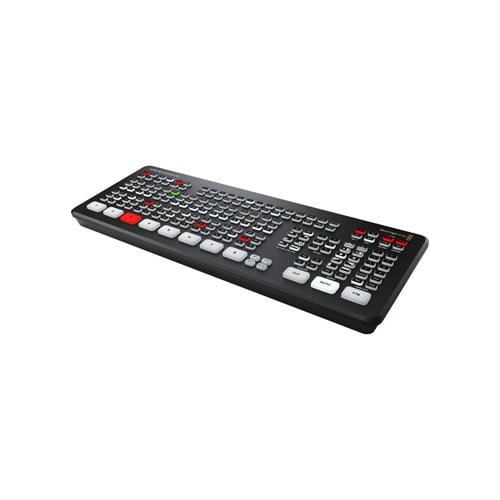

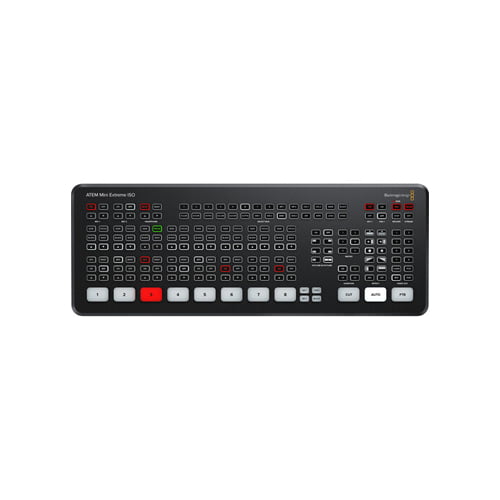

Blackmagic Design ATEM Mini Extreme ISO

Blackmagic Design ATEM Mini Extreme ISO

ATEM Mini Extreme ISO includes all the features of ATEM Mini Extreme, plus also records 9 separate H.264 video streams in real time, allowing capture of all 8 clean feed inputs as well as the program video. A DaVinci Resolve project file is also saved allowing the project to be recreated and edited later!

Tags: Blackmagic Design ATEM Mini Extreme ISO, Blackmagic ATEM Mini Extreme ISO, ATEM Mini Extreme ISO, Blackmagic Design ATEM Mini Extreme ISO Best Price in India, Blackmagic Design ATEM Mini Extreme ISO Online Buy, Blackmagic Design ATEM Mini Extreme ISO Online Buy Mumbai India

Specifications

• Connections
  Total Video Inputs
  8
  Total Outputs
  4
  Total Aux Outputs
  2
  Total Audio Inputs
  2 x 3.5mm stereo mini jack.
  Total Audio Outputs
  1 x 3.5mm stereo mini jack.
  Timecode Connection
  None
  HDMI Video Inputs
  8 x HDMI type A, 10-bit HD switchable.
  2 channel embedded audio.
  Video Input Re-Sync
  On all 8 HDMI inputs.
  Frame Rate and Format Converters
  On all 8 HDMI inputs.
  HDMI Program Outputs
  2
  Ethernet
  Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
  Computer Interface
  2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
• Standards
  HD Video Input Standards
  720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  1080i50, 1080i59.94, 1080i60
  HD Video Output Standards
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  Video Streaming Standards
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  Ultra HD Video Standards
  None
  Video Sampling
  4:2:2 YUV
  Color Precision
  10-bit
  Color Space
  Rec 709
  HDMI Input Resolutions from Computers
  1280 x 720p 50Hz, 59.94Hz and 60Hz
  1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz
  1920 x 1080i 50, 59.94Hz and 60Hz
  Colorspace Conversion
  Hardware based real time.
• Product Specifics
  Upstream Keyers
  4
  Downstream Keyers
  2
  Advanced Chroma Keyers
  Up to 4
  Linear/Luma Keyers
  Up to 4
  Transition Keyer
  DVE only.
  Total Number of Layers
  9
  Pattern Generators
  5
  Color Generators
  2
  DVE With Borders and Drop Shadow
  2
  Interface
  Minimum monitor resolution of 1366 x 768.
• Audio
  Audio Mixer
  11 input x 2 channel mixer.
  Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
  Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
  Analog Input
  Unbalanced stereo
  Analog Input Delay
  Up to 8 frames
  Input Impedance
  1.8k
  Max Input Level
  +6dBV
  Mic Plug In Power
  Available on both 3.5mm mini jack connections.
• Streaming
  Direct Streaming
  ATEM Mini Extreme ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
• Recording
  Direct Recording Video and Audio
  USB-C 3.1 Gen 1 expansion port can record directly to external media.
  Video Recording
  8 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.
  1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
  Audio Recording
  10 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog 2 channel audio inputs and 8 x HDMI 2 channel embedded audio inputs.
  Switching
  Program switching recorded as a DaVinci Resolve project .drp file.
  Media Format
  Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
• Multi View Monitoring
  Multi View Monitoring
  Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters.
  Multi View Video Standard
  HD
• Media Player
  Media Players
  2
  Channels
  Fill and key for each Media Player.
  Media Pool Still Image Capacity
  20 with fill and key.
  Media Pool Still Image Format
  PNG, TGA, BMP, GIF, JPEG and TIFF.
• Control
  Control Panel
  Built in control panel. Software control panel with camera control included. Supports optional hardware panel.
  Control Panel Connection
  Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Extreme ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
  Control Panel Compatibility
  Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Extreme ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
  Control Panel Included
  ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina, Mac 11 Big Sur or later and Windows 10 64 bit only.
• Software
  Software Updates
  Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
  Configuration
  Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
• Operating Systems
  Mac 10.15 Catalina,
  Mac 11.1 Big Sur or later.
  Windows 10, 64-bit.
• Power Requirements
  Power Supply
  1 x External 12V power supply.
  Power Usage
  36W
• Environmental Specifications
  Operating Temperature
  5° C to 40° C (41° - 104° F)
  Storage Temperature
  -10° to 60° C (14° to 140° F)
  Relative Humidity
  0% to 90% non-condensing
