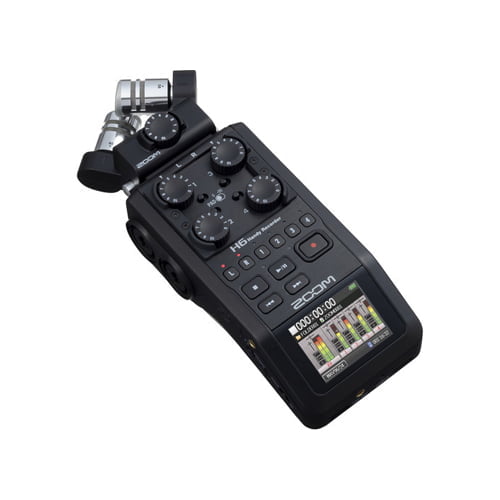

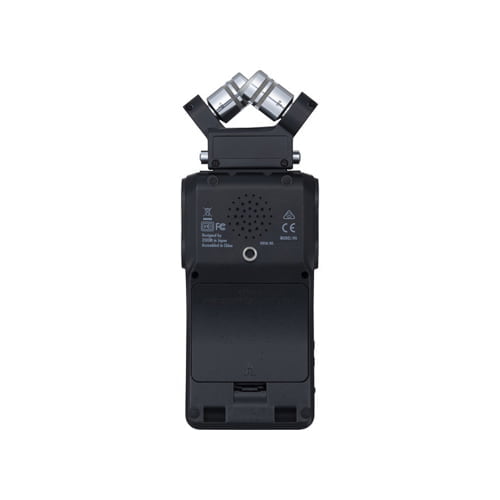

Zoom H6 Six-Track Portable Handy Recorder with Single Mic Capsule (Black)
THE RECORDER THAT DOES IT ALL.
The H6 is the ultimate portable recorder. With its advanced preamps and interchangeable capsules, the H6 delivers unmatched versatility and award-winning quality.
Creative Versatility
From podcasting to music to filmmaking and more, the H6 is your go-to recorder.
PODCAST ANYWHERE
From the studio to remote locations, podcasts are produced everywhere. With inputs for every guest, the battery-powered H6 is a complete portable podcasting solution.
UNLIMITED STUDIO TIME
The H6 is your personal music studio 24/7. With up to six* discrete line-level / mic-level inputs, plus the ability to overdub and more, the H6 provides the road from a great idea to the perfect track.
SOUND FOR EVERY SCENE
Featuring interchangeable mic capsules, four combo inputs and six tracks of quality recording, the H6 is ready to record on any set and in any scene the director throws at you.
FROM SAMPLING TO SOUND DESIGN
Whether you’re a musician creating your own unique masterpiece, or a sound designer looking for that perfect sound effect, the H6 will become your most trusted companion.

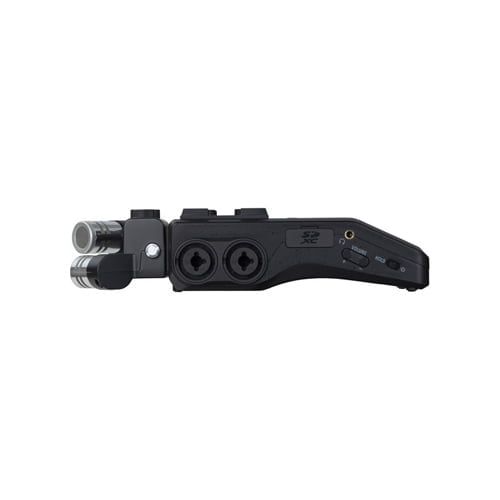

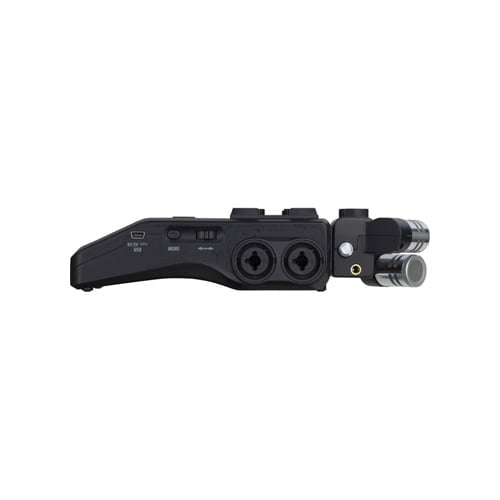

INS & OUTS Ins
The H6 offers four XLR/TRS combo jacks with dedicated pad switches and gain control for distortion-free recording.
Outs
The H6 features two 1/8” outputs, a stereo line out as well as a headphone out with dedicated volume control.
MULTI-CHANNEL AUDIO INTERFACE
The H6’s USB port enables it to serve as a stereo or multi-channel audio interface for your computer or iPad.
RECORDING TIME & FILE FORMATS
Record continuously for over 20 hours with just four AA batteries or extend your recording time indefinitely with the optional AD-17 adapter.
FREE RECORDING & EDITING SOFTWARE
The Zoom H6 comes with free download licenses for Steinberg’s Cubase LE music production software and WaveLab LE audio editing software, enabling you to not only capture, but create.
Features:
Interchangeable input capsules
Six-track simultaneous recording
Four mic/line inputs with XLR/TRS combo connectors
Gain control knobs and -20dB pads for each input
Supplied XYH-6 X/Y capsule provides secondary input via a stereo ⅛” Mic/Line In mini phone jack
Phantom power for all main inputs: +12/+24/+48V
Large full-color, angled LCD display
Records directly to SD, SDHC and SDXC cards up to 128GB
Up to 24-bit /96kHz audio in BWF-compliant WAV or a variety of MP3 formats
Auto-record, Pre-record and Backup-record functions mean that you’ll never miss that perfect take
Built-in effects, including low-cut filtering, compression, and limiting
Multichannel and stereo USB audio interface for PC/Mac/iPad
Accepts standard AA alkaline or NiMH rechargeable batteries
Over 20 hours of operation with 4 AA alkaline batteries
Tags: Zoom H6 Six-Track Portable Handy Recorder with Single Mic Capsule (Black), Zoom H6 Six-Track Portable Handy Recorder with Single Mic Capsule, H6 Handy Recorder, Zoom H6 Six-Track Portable Handy Recorder with Single Mic Capsule Best Price in India, Zoom H6 Six-Track Portable Handy Recorder with Single Mic Capsule Online Buy, Zoom H6 Handy Recorder Online Buy Mumbai India
Specifications
RECORDING MEDIA
SD CARD:
16MB to 2GB
SDHC CARD:
4GB to 32GB
SDXC CARD:
64GB to 128GB
INPUTS
XYH-6 X/Y MIC:
Mic type: Unidirectional
Sensitivity: -41 dB, 1 kHz at 1 Pa
Input gain: -∞ to 46.5 dB
Max sound pressure input: 136 dB SPL
XYH-6 MIC/LINE IN:
Connector: 1/8″ stereo mini jack
Input level: – ∞ to 46.5 dB
Input impedance: 2 k Ω
Plug-in power: 2.5V supported
MSH-6 MS MIC:
Mic types: Unidirectional and bi-directional
Sensitivity: -37 dB, 1 kHz at 1 Pa (unidirectional)
-39 dB, 1 kHz at 1 Pa (bi-directional)
Input gain: -∞ to 42.5 dB
Max sound pressure input: 120 dB SPL (unidirectional)
122 dB SPL (bi-directional)
INPUTS 1 TO 4:
Connectors: XLR / TRS combo jacks
(XLR: Pin 2 hot / TRS: Tip hot)
Input gain: (PAD OFF) -∞ to 55.5 dB
Input gain: (PAD ON) -∞ to 35.5 dB
Input impedance: 1.8kΩ or more
Max input level: +22 dBu (PAD ON)
Phantom power: +12V /+24V /+48V
(Phantom power can be turned on/off independently for Inputs 1 – 4)
Equivalent Input Noise (EIN): -120 dBu or less
OUTPUTS
LINE OUT:
Jack type: 1/8″ stereo mini jack
Rated Output Level: -10 dBu when output load impedance is 10k Ω or more
PHONE OUT:
Jack type: 1/8″ stereo mini jack
Output Level: 20 mW +20 mW into 32 Ω load
BUILT-IN SPEAKER:
400mw 8 Ω mono speaker
RECORDING FORMATS
WAV:
Sampling frequency: 44.1/48/96 kHz
Bit rate: 16/24
(Mono/Stereo, BWF-compliant)
Maximum simultaneous recording tracks: 8 (L/R + INPUT 1 to 4 + L/R backup)
(Backup recording: -12dB lower than set L/R input ga
MP3:
Sampling frequency: 44.1kHz
Bit Rate: 48/56/64/80/96/112/128/160/192/224/256/320kbps
Maximum simultaneous recording tracks: 2
DISPLAY
LCD SCREEN:
2.0-inch full color LCD (320 x 240 pixels)
USB
MASS STORAGE CLASS OPERATION:
Class: USB2.0 High Speed
AUDIO INTERFACE OPERATION: MULTI-TRACK MODE:
Class: USB2.0 High Speed
Inputs / Outputs: 6 / 2
Sampling frequency: 44.1/48kHz/96kHz
Bit rate: 16/24 bit
USB bus powered operation possible
POWER REQUIREMENTS
AA size (LR6) battery x 4
Alkaline or NiMH type
AC adapter: AD-17 (DC5V/1A/USB-type) (optional)
USB bus power
BATTERY LIFE
Battery life (with alkaline battery, continuous recording) Over 20 hours
