Unleash the Power of Precision Monitoring:

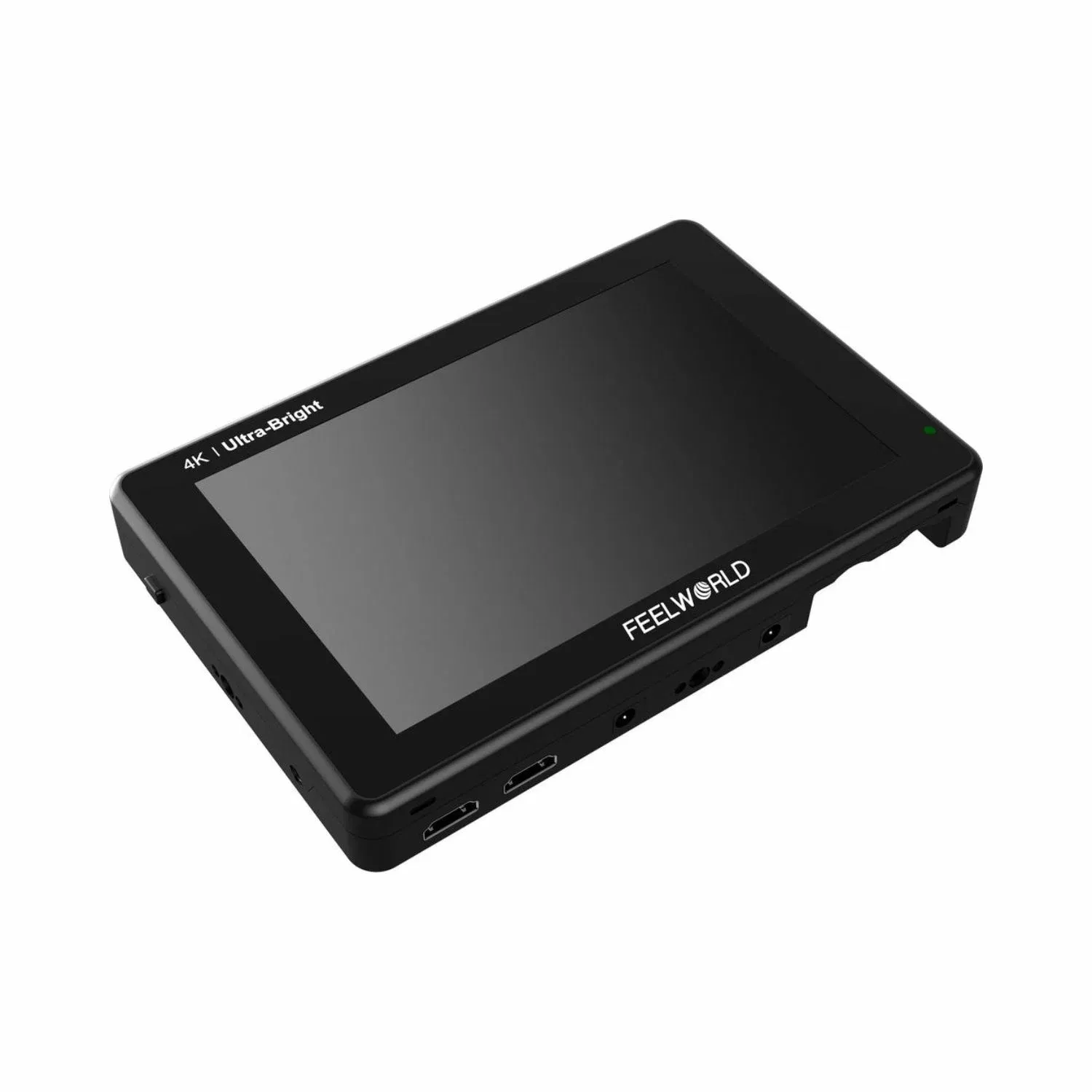

Elevate your filmmaking with the FeelWorld LUT7, a professional-grade 7-inch field monitor designed to empower your creativity. This monitor boasts a stunning 1920×1200 resolution IPS LCD display with a remarkable 2200nit brightness, ensuring crystal-clear visuals even in glaring sunlight. Say goodbye to squinting and hello to perfect shot evaluation, regardless of the environment.
3D LUT Loading: Color Fidelity at Your Fingertips:
Bring your creative vision to life with the LUT7’s intuitive 3D LUT loading capabilities. Upload custom LUTs (Look Up Tables) to transform your footage into stunning cinematic styles or apply camera correction profiles for on-the-go color grading. With the LUT7, you have complete control over the look and feel of your final masterpiece.
Exposure Tools Made Easy:
Take the guesswork out of achieving perfect exposure with the LUT7’s comprehensive suite of exposure monitoring tools. Utilize features like waveform, vectorscope, and histogram to analyze your image in real-time, ensuring balanced lighting and avoiding blown-out highlights or crushed shadows.
Focus Peaking for Razor-Sharp Accuracy:
Never miss a critical focus pull again. The LUT7’s focus peaking function highlights sharp edges in your image with a user-selectable color overlay. This visual aid ensures pinpoint focus, especially when working with shallow depth of field or high-resolution cameras.
Built to Withstand the Elements:
The LUT7 isn’t just another pretty monitor. It’s a rugged companion built to endure the rigors of production. The lightweight yet durable chassis is constructed from high-quality materials, making it resistant to shocks, vibrations, and dust. Whether you’re shooting on a bustling film set or exploring remote locations, the LUT7 can handle it all.

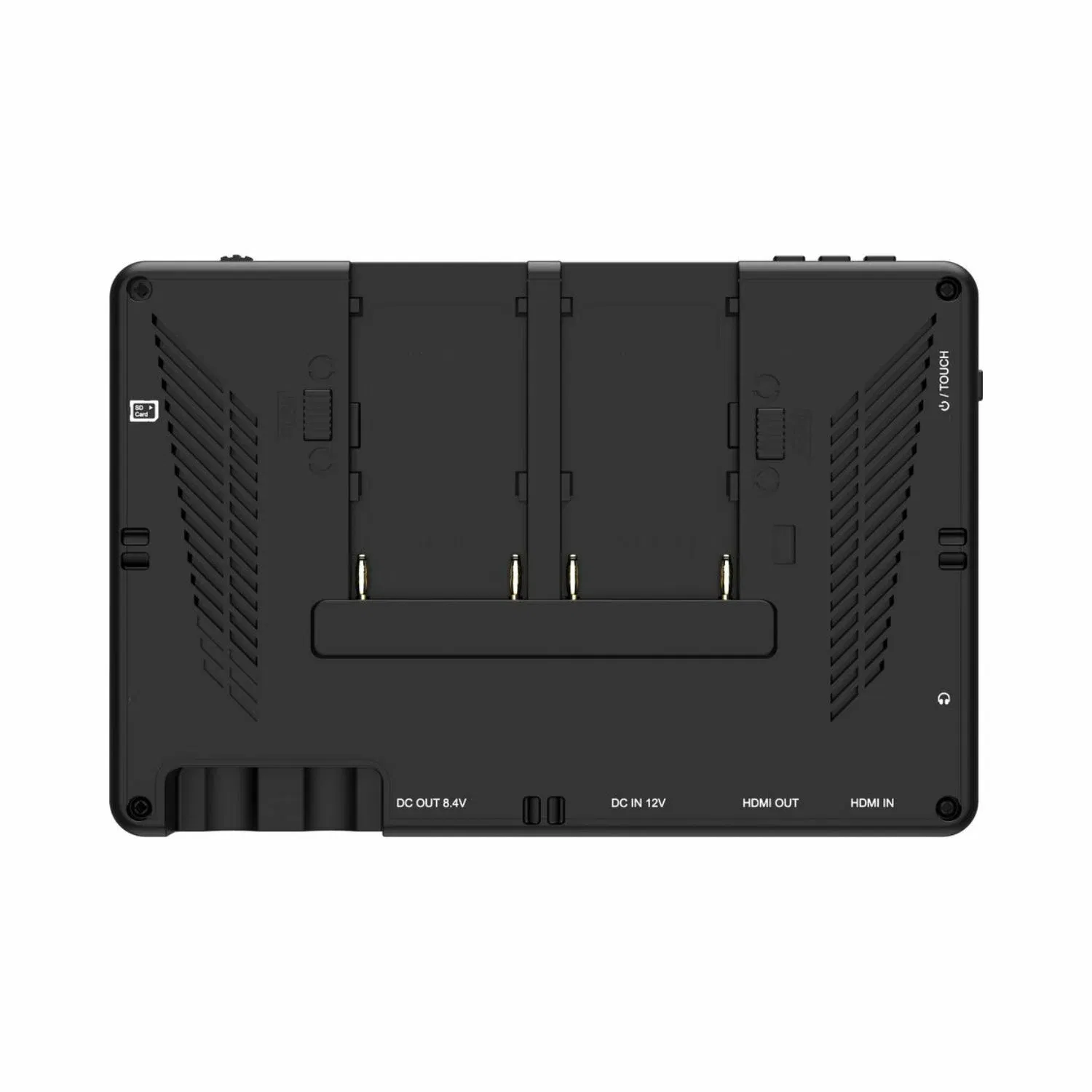

Input/ Output Input: 1 X 4K HDMI Output: 1X 4K HDMI, DC Output ( Barrel (3.5mm outer, 1.1mm inner) barrel output for powering cameras via camera specific adaptor) Audio: 3.5mm Stereo Headphone HDMI Input/ Output Support Format: 480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/23.98)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

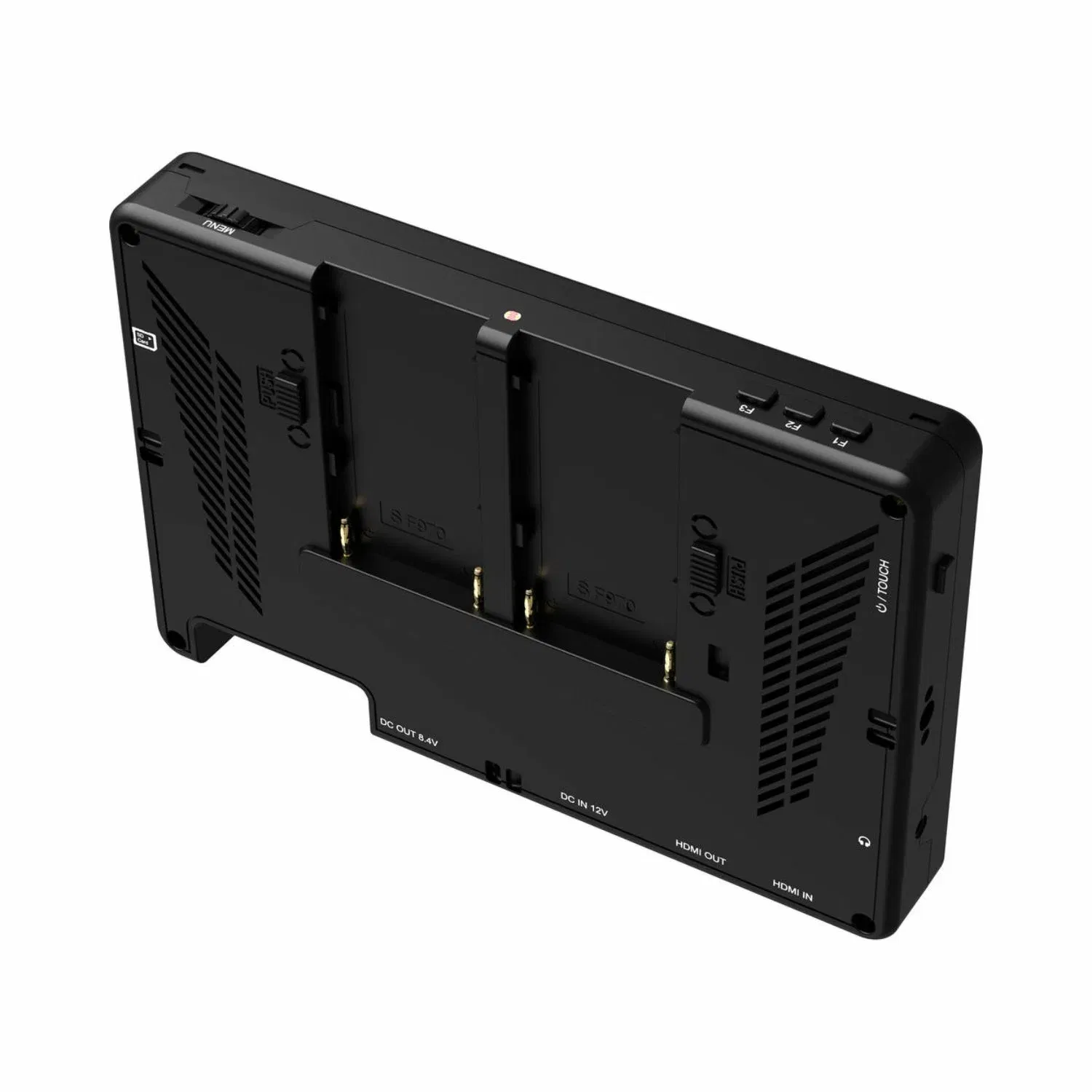

General Input Voltage: DC7～24V Consumption: ≤20W Working Temperature: –20°C~55°C Storage Temperature: -30°C~65°C Install Way: 1/4″-20 Thread Socket (Left, Right, Bottom) Unit Size: 190Lx126Hx27D (mm) Battery Plate: Dual F970 Battery Plate Compatible Battery: Sony F970, F960, F950,F930, F770, F750, F730, F570, F550, F530, QM91D, QM91, QM90D, QM90, QM71D, QM71, QM70D, QM70, QM51D, QM51, FM71, FM70 series. Because the FEELWORLD LUT7S monitor is the ultra bright, we recommend use Sony F970 battery, two F970 batteries can use 4-5 hours.

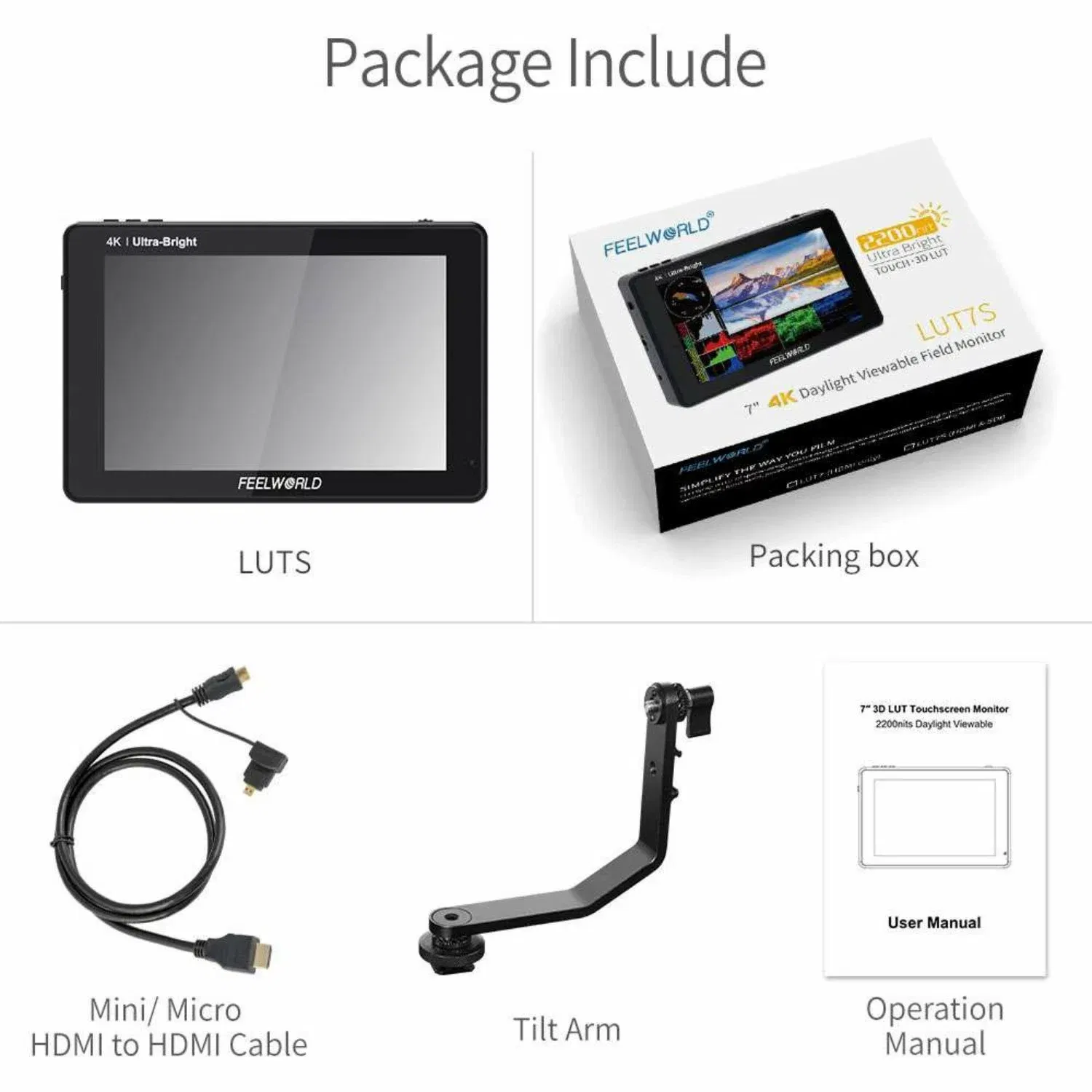

(Note battery not include, need purchase separate)
The monitor install one F970 battery can be used about 2 hours, and install two F970 batteries can be used for about 4-5 hours. You can choose install 1 or 2 battery base on your need.
FAQs
What is the FeelWorld LUT7 7″ 3D LUT 4K HDMI Field Monitor?
The FeelWorld LUT7 is a professional-grade 7-inch field monitor designed for filmmakers and videographers. It features advanced 3D LUT technology and supports up to 4K resolution via HDMI, delivering stunning image quality and color accuracy.
What are the key features of the FeelWorld LUT7 Monitor?
The FeelWorld LUT7 boasts a range of features including a 2200nit high-brightness display, 3D LUT support for precise color calibration, 4K HDMI input/output, multiple aspect ratio options, and a wide viewing angle. It also supports various video assist functions like histogram, focus peaking, and zoom-in.
How does the 3D LUT technology benefit filmmakers?
3D LUT technology allows filmmakers to apply custom color grading presets directly to the monitor, enabling accurate on-set color representation. This ensures consistent and reliable color grading, streamlining the post-production process and enhancing overall workflow efficiency.
Is the FeelWorld LUT7 suitable for outdoor use?
Yes, the FeelWorld LUT7 is designed for outdoor use with its 2200nit high-brightness display, making it easily visible even in bright sunlight conditions. This makes it an ideal choice for outdoor shooting environments where visibility is crucial.
Does the FeelWorld LUT7 support various camera setups?
Absolutely, the FeelWorld LUT7 is compatible with a wide range of cameras thanks to its 4K HDMI input/output. Whether you’re using a DSLR, mirrorless camera, or professional cinema camera, the LUT7 provides seamless connectivity and monitoring capabilities.
Can the FeelWorld LUT7 be customized to specific user preferences?
Yes, the LUT7 offers extensive customization options including user-definable function buttons and customizable aspect ratio settings. Users can tailor the monitor to their specific needs and preferences, ensuring a personalized and efficient workflow.
